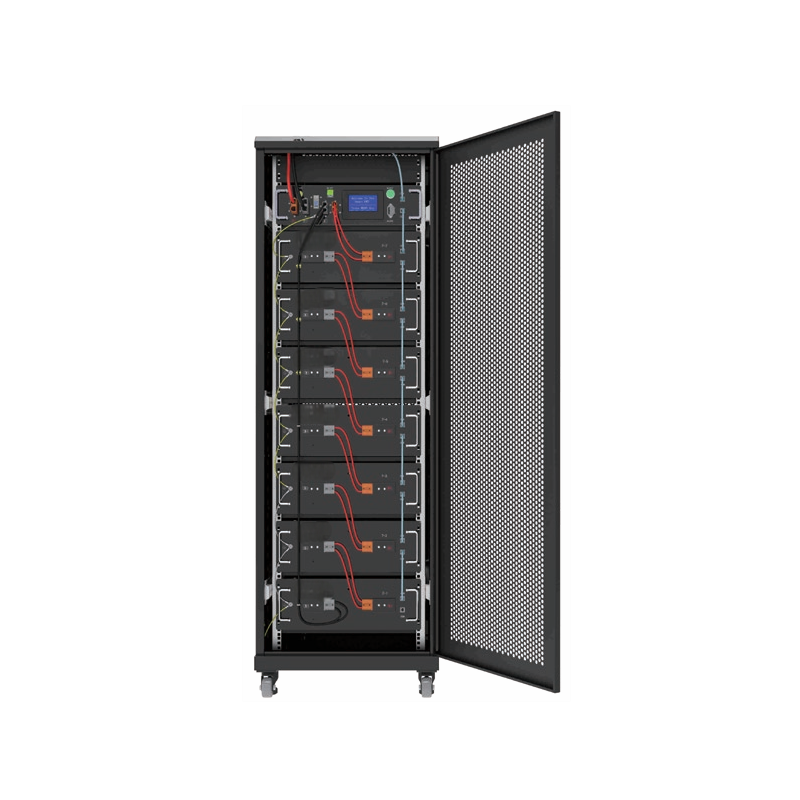

Our 540V 200Ah/300Ah LiFePO4 battery offers safe, long-lasting performance for solar systems, UPS, and backup power. This lithium iron phosphate battery supports 1C high discharge rate and scalable parallel expansion. Ideal for homes, businesses, and off-grid energy applications .
| Module | BCB540 |
| Cell | LiFePO4 |
| Cell Capacity | 3.2V/100Ah |
| Configuration | 1P168S |
| Nominal Energy | 53.76kWh*N |
| Nominal Voltage | 537.6V |
| Voltage Range | 470-596V |
| Discharge-rate | Max 1C |
| DOD | 90% |
| Cooling Method | Air Force Cooling |
| Demension | 440 * 450 * 170mm/ 32U*1P |
| Weight | 490kg |
| Noise | ≤75db |
| Ingress Protection | IP20 |
| Operating Temp | -20℃~50℃(>45℃ derating) |
| Storage Temperature | -30℃~60℃ |
| Humidity Relative | 0~95%(no condensation) |
| Communication Interface | ≤3000m(>2000m derating) |
| Fire Protection System | CAN2.0 / RJ45 / RS485 |
| Communication Protocol | Can / Modbus / IEC61850 / IEC104 |
