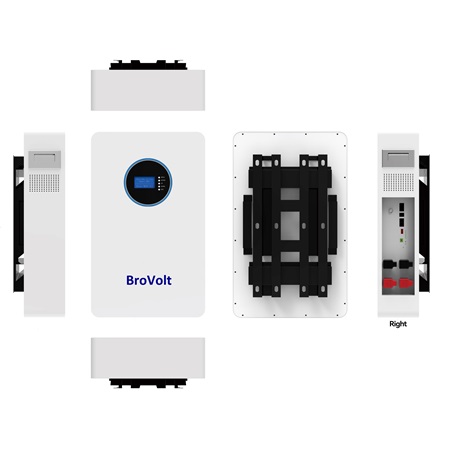

This 48V300Ah is maily using solar power system for family house. Smart Management: Built-in BMS that provides multi-level protection, including overcharge, over-discharge, and overheating, enhancing system reliability. Parallel Expansion: Supports parallel usage, allowing capacity to scale up to 225 kWh Compatibility: Compatible with most inverters
| Item | Specification | Conditions |
|---|---|---|
| Model | BP48300 | |
| Voltage | 51.2V | |
| Capacity | 300Ah | 25℃,0.2C |
| Max Discharging Current | 200A | Recommended 60A |
| Max Charging Current | 200A | Recommended 60A |
| Weight | 128kg | ±0.5kg |
| Cycle Life | >6000 times | 0.2C, 80%DOD, 25 ℃ |
| Design Life | >10 years | |
| Charging Voltage | 58.4V | |
| Discharging Voltage | 44.8V | |
| Battery Cell | LiFePO4 | |
| Storage Temp | -10℃~55℃ | |
| Discharge Temp | -20℃~55℃ | |
| Charge Temp | -20℃~55℃ | |
| Dimension | 520*250*720mm |
| Model | BP48300 |
| Nominal Voltage | 51.2V |
| Nominal Capacity | 300Ah |
| Max Discharging Current | 200A |
| Max Charging Current | 200A |
| Weight | 128kg |
| Cycle Life | >6000 times |
| Design Life | >10 years |
| Charge Cut-off Voltage | 58.4V |
| Discharge Cut-off Voltage | 44.8V |
| Battery Cell | LiFePO4 |
| Storage Temp | -10℃~55℃ |
| Discharging Temp | -20℃~55℃ |
| Charging Temp | -20℃~55℃ |
| Dimension | 520*250*720mm |
