The RV solar power supply system is the core equipment for achieving "off-grid freedom". Solar energy is converted into electrical energy through solar panels, and then it is used to power on-board electrical appliances (such as refrigerators, air conditioners, lighting, etc.) after solar batteries and regulation. It is particularly suitable for long-distance camping, outdoor adventures and other scenes with unstable power environment. Although the system structure looks simple on the surface, it is necessary to take into account power generation efficiency, solar battery capacity and space adaptability in design and actual application.
This article will analyze the key contents of the RV solar power supply system in detail from three aspects: system core components, design points, and use and maintenance.
1. System Core Components

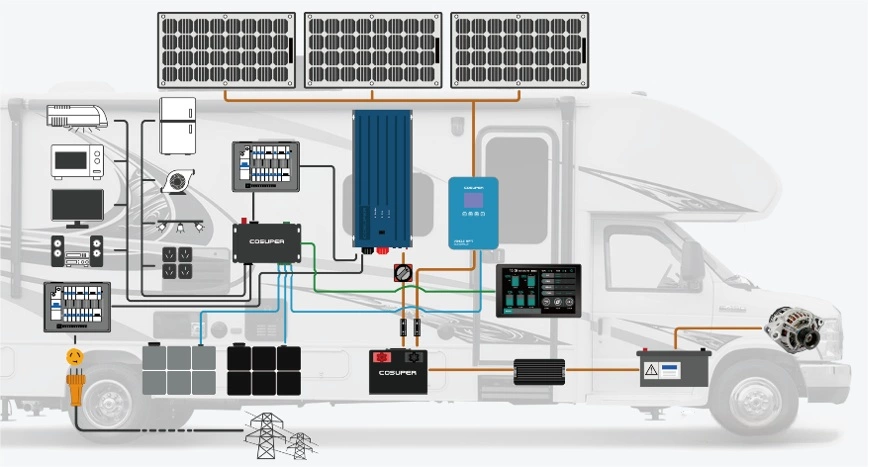

The RV solar power supply system is usually composed of four modules: power generation, energy storage, control, and power consumption. The performance of each component directly determines the power supply stability and reliability of the entire system:
1.1 Solar Panels
1.1.1 Function:
-Converts light energy into direct current
1.1.2 Common types and suitable scene selection
- Monocrystalline silicon panels: high efficiency (18%-23%), suitable for rooftop paving;
- Flexible panels: bendable, suitable for curved roofs, slightly lower efficiency (15%-18%)
1.2 Solar Batteries
1.2.1 Function:
-Store electricity for use on cloudy days or at night
1.2.2 Common types and suitable scene selection
- Lithium battery (lithium iron phosphate): lightweight, long cycle life (3000 times +), suitable for frequent charging and discharging;
- Lead-acid battery (colloid/maintenance-free): low cost, slightly better low temperature performance, but heavy and short life (300-500 times)
-Charge and discharge rate (RV recommended 1C and above)
Brovolt's 12V/24V lithium iron phosphate (LiFePO₄) battery has high energy density, long cycle life, excellent safety and excellent temperature control adaptability, making it an ideal on-board energy storage solution.
-High energy density, light and space-saving: suitable for limited RV storage space, easy to install under seats, trunks and other locations.
-Ultra-long life ≥ 3000 cycles: compared with lead-acid batteries, the service life is increased by 4~6 times, especially suitable for solar energy systems with frequent charging and discharging.
-Safe and stable: using lithium iron phosphate cells, good thermal stability, support large current charging and discharging, with BMS (battery management system) multiple protection.
-Optional 12V/24V multiple voltage platforms: meet different system design requirements
-Support parallel expansion: flexibly build 1~5kWh energy storage units to meet different travel lengths and electrical loads.
1.3 Solar Controller
1.3.1 Function
-Regulate the charging process to protect the battery from overcharge/overdischarge
1.3.2 Common types and suitable scene selection
- PWM controller: simple structure, low cost, suitable for low-power systems (≤300W);
- MPPT controller: tracks the maximum power of the solar panels, high efficiency (90%-97%), suitable for high-power systems (≥500W)
-Rated current (≥1.2 times the total current of solar panels); whether with temperature compensation / USB output
1.4 Inverters
1.4.1 Function
-Convert direct current (12V/24V) to alternating current (220V)
1.4.2 Common types and suitable scene selection
- Modified wave inverter: drives low-power resistive appliances (light bulbs, mobile phone chargers);
- Pure sine wave inverter: adapts to inductive loads such as refrigerators and air conditioners to avoid equipment damage
-Continuous power (≥ total power of all electrical appliances); peak power (to cope with instantaneous power when the motor starts)
2. Analysis of the "full-link" design from power generation to power consumption: customized on demand, balancing "power generation-energy storage-space" .
The roof area of RVs is limited (usually 3-6 square meters). When designing the system, it is necessary to reasonably configure it according to the actual power demand and the body structure to avoid "power redundancy wastes space" or "insufficient power supply affects the experience".
2.1. Clarify the daily electricity demand and calculate the "electricity bill" first
Statistic the power and usage time of common electrical appliances:
-12V car refrigerator (50W, 8 hours of work per day) = 0.4kWh
-220V laptop (60W, 4 hours of use) = 0.24kWh
-Add LED lights, mobile phones, camera charging, etc., the total daily energy consumption is about:
-Light use: 1-2kWh/day
-Heavy use (including air conditioners, induction cookers, etc.): 3-5kWh/day
2. 2 Calculate the power of solar panels to ensure power generation needs
Considering the power generation efficiency decreases on cloudy days (only 30%-50% of sunny days), it is recommended that the total power of solar panels be configured according to the following formula:
Total power = average daily energy consumption × 1.5 ÷ effective sunshine duration (hours)
Example:
-Average daily power consumption 3kWh, effective sunshine 4 hours
-Required PV module power = 3×1.5÷4 ≈ 1125W
-Optional configuration: 300W×4
2.3 Configure battery storage system to ensure power supply at night and on cloudy days
The battery capacity needs to meet the power supply requirements for 2-3 consecutive days:
For example, if the daily power consumption is 3kWh, use 12V system:
Battery capacity = 3×2 ÷12V = 500Ah
Or choose 24V system: 250Ah (the higher the voltage, the smaller the line loss)
2.4 Optimize the installation position based on vehicle space
Lithium batteries are small and can be flexibly placed under seats, in the trunk, etc.
Lead-acid batteries are heavy and are recommended to be installed on the chassis or at the center of gravity to avoid the center of gravity shifting during vehicle driving.
It is recommended that photovoltaic panels be laid flat in an unobstructed area (such as between air conditioners and skylights), with an inclination angle close to the latitude (such as 30° at 30° north latitude) to improve the power generation efficiency at noon.
If the roof area is insufficient, you can use:
Retractable photovoltaic panels (unfolded when parking, folded when driving);
Foldable portable panels (used for temporary parking and charging).
3. Usage and Maintenance Guide: Key Details to Improve System Efficiency and Extend Life
RV solar generator systems are exposed to complex outdoor environments such as vibration, high temperature difference, and dust for a long time, so regular maintenance is required:
3. Usage and Maintenance Guide: Key Details to Improve System Efficiency and Extend Life
RV solar generator systems are exposed to complex outdoor environments such as vibration, high temperature difference, and dust for a long time, so regular maintenance is required:
3.1 Solar panel maintenance: maintain efficient power generation
-Clean dust and bird droppings on the panel surface every week (especially after rainy days)
-Clean up snow and fallen leaves in time
-Check the wiring interface to avoid loosening or oxidation caused by vibration
-The wiring terminal is sealed with waterproof glue, and the MC4 plug is protected with waterproof paste
A 10% blocked area may cause the power generation efficiency to drop by up to 50%.
3.2. Battery storage maintenance: extend battery life (combined with climate conditions)
Temperature management: lithium-ion batteries are afraid of high temperatures (＞40℃), and low temperatures will affect the capacity of lead-acid batteries; Recommendations:
-Avoid heat sources such as engines and exhaust ports
-Use battery insulation devices or choose low-temperature resistant batteries in winter
Charge and discharge management:
-The remaining power of lithium-ion batteries should be ≥10%, and that of lead-acid batteries should be ≥30%
-When parked for a long time, the power should be maintained at 50%-60%, and recharged every 2 weeks
3.3 Check the operation of the solar controller and inverter
-Check the display interface of the controller to confirm whether the charging mode is "equalized charge" or "floating charge"
-Clean the dust from the heat dissipation holes of the controller to avoid overheating
-If the controller has an "overcharge protection" alarm, check whether the total photovoltaic power exceeds its rated value
-When using the inverter, avoid long-term full-load operation; turn off the inverter in time after turning off the electrical appliances to prevent no-load power consumption.
3.4 Advanced optimization plan: realize stable, safe and efficient off-grid life
Multi-source complementary power supply system:
-Add AC charging module and driving generator interface
-When solar power is insufficient, the power can be supplemented by vehicle operation or external power supply to build a "solar-vehicle-electricity" three-element complementary system
Optimize power usage habits:
-Prioritize the use of 12V native DC appliances, such as LED lights and car refrigerators
Reduce conversion losses during DC to AC conversion
-High-power equipment (such as microwave ovens and induction cookers) is recommended to be used during the peak power generation period at noon to avoid over-discharging the battery
Conclusion: Let "sunshine energy" truly serve travel life
The core concept of the RV solar power supply system is "configuration on demand, meticulous maintenance". A well-designed system can meet more than 80% of daily electricity needs, greatly reducing dependence on camp power supply, and achieving true freedom of travel.
Whether it is a short weekend trip or a long-distance cross-border trip, as long as the use strategy is adjusted according to the environment and the status of system components is checked regularly, "sunshine" can become a reliable and stable mobile energy source, making RV life more secure and free.
